1. What should a customer do if a resistor in the layout is not recognized by HJTC 's LVS command file?
Some resistors that are customer made cannot be recognized in our official LVS command files. In these cases,CDS can provide help to create a customized command file by customers' request.
Simply add command ".PARAM" before the circuit description block in the SPICE/CDL net_list file will have Dracula take the parameters on the sub_circuit.
LVS files are provided as working templates. Some modification may be required for additional customized devices or recognition / construction issue.
4. Are special components for mixed-mode and RF such as inductors and triple-well MOS recognized by HJTC' s LVS command files?
Yes, these devices are supported in LVS files of HJTC Mixed Mode/RFCMOS process if FDK PCELL include them.

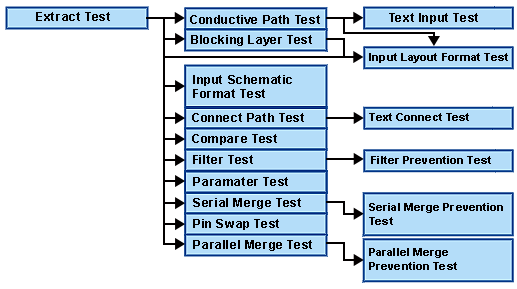

1. LVS test structures
2. QA check list file.
3. Single device QA pattern.
4. Library and FDK circuit.
