Design Verification

LVS Questions

    Some resistors that are customer made cannot be recognized in our official LVS command files. In these cases,CDS can provide help to create a customized command file by customers' request.

    Simply add command ".PARAM" before the circuit description block in the SPICE/CDL net_list file will have Dracula take the parameters on the sub_circuit.

    LVS files are provided as working templates. Some modification may be required for additional customized devices or recognition / construction issue.

    Yes, these devices are supported in LVS files of HJTC Mixed Mode/RFCMOS process if FDK PCELL include them.

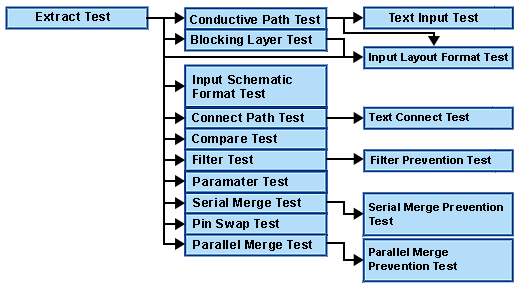

    1. LVS test structures
    2. QA check list file.
    3. Single device QA pattern.
    4. Library and FDK circuit.
